Advanced semi-reflex PPG wing

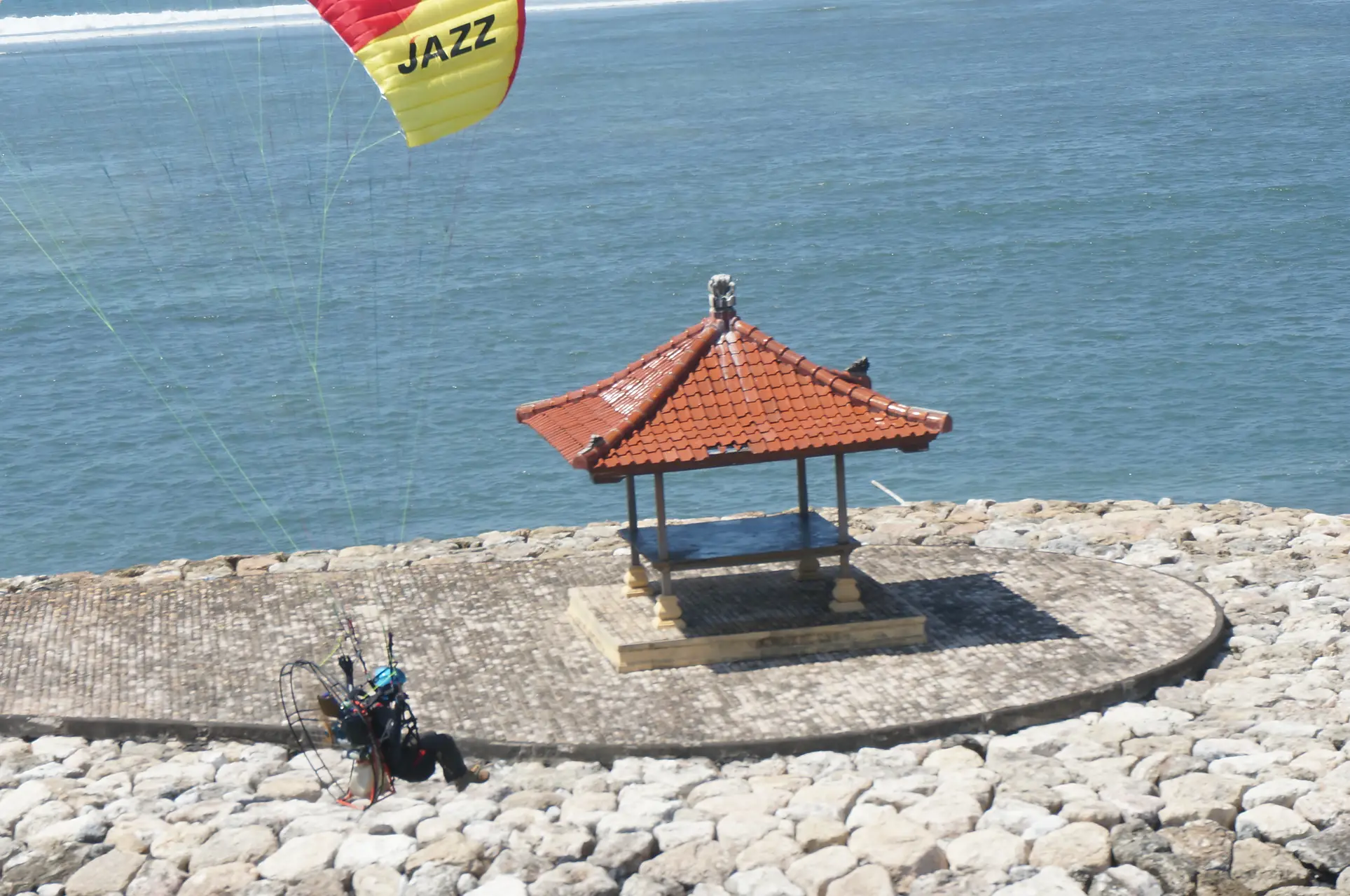

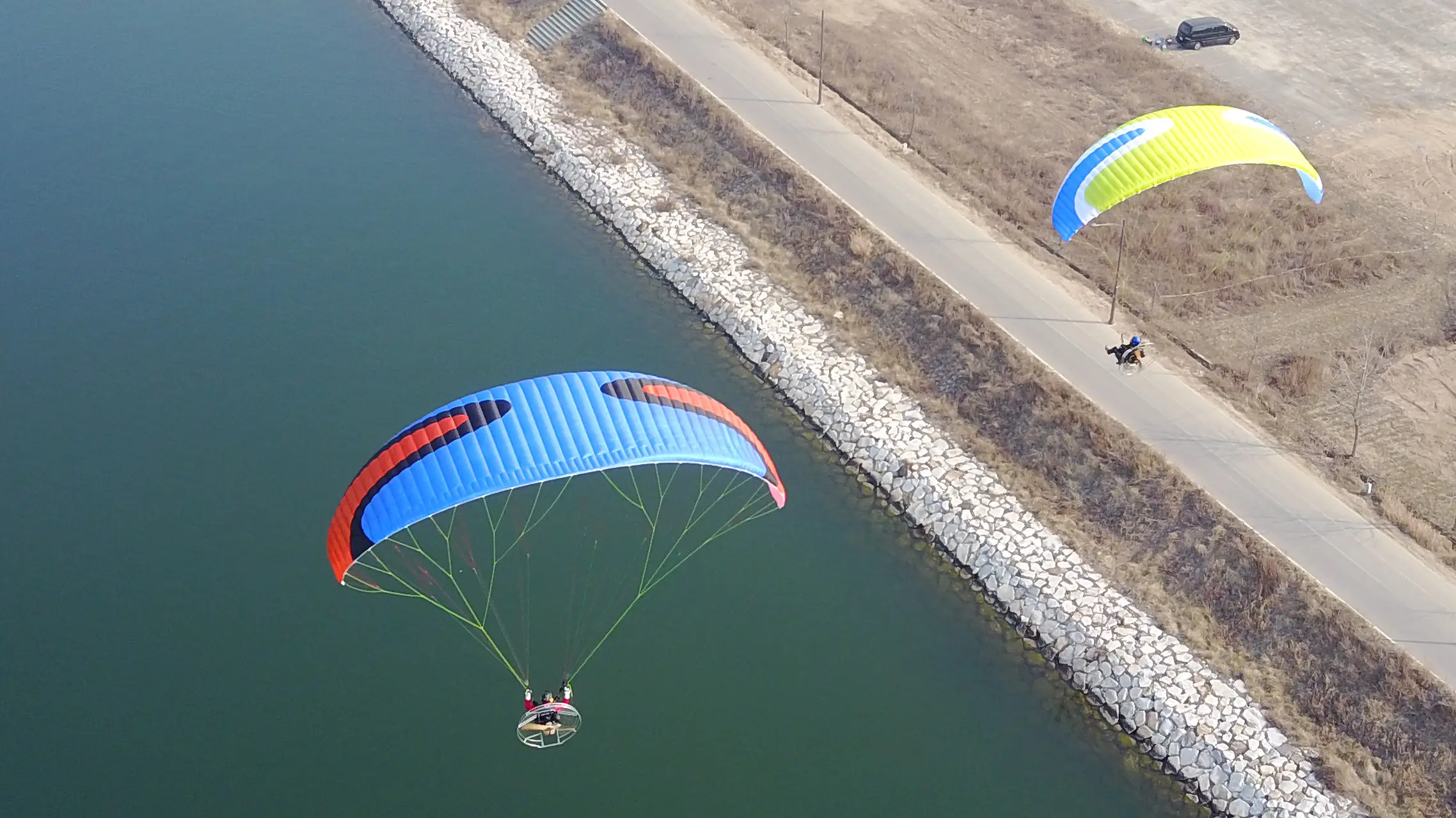

JAZZ . Flying fun, even in the most challenging conditions.

The JAZZ goes with you wherever you go. Its semi-reflex profile makes it easy to launch and stable at all speeds.

JAZZ wants to explore the environment with you, flying over the horizon and back again. An aspect ratio of 5.3 ensures good fuel efficiency without making the JAZZ too demanding. The JAZZ can be used in training as a successor to the Ballad, allowing talented students to take advantage of flying an advanced glider. The speed and trimmer systems provide elevated speeds so that long distances can be covered quickly and comfortably without extra waste of fuel. The controls are light without being nervous, making the JAZZ easy to handle. With the trimmers closed, the approach speed is pleasantly low and the landing is always pleasantly controllable due to the well dosed flair.

Designer's note:

The design of the JAZZ was focused on an accessible XC paramotor wing to achieve these high performance levels, while remaining very accessible. Agile with safety characteristics and turbulence dampening were also important. Meteorological conditions on a long trip are not always predictable. Based on our experience with previous models, we were able to keep some old good features unchanged, while at the same time designing and thoroughly testing the necessary adjustments to finally present a mature paramotor glider in the form of the JAZZ.

Technical features:

  • SNI (Smart Nose Intakes) makes takeoff preparation easier and gives the leading edge more strength, making it more resistant to collapses.
  • TMR (Trailing Edge Miniribs): less drag caused by the trailing edge, tighter shape, more performance.
  • RLE (Rigid Leading Edge): less drag, smaller surface area, smooth airflow over the wing surface.

SNI

Smart Nose Intakes

RLE

Rigid Leading Edge

TMR

Trailing edge Mini Ribs

OPS

Optimized Profile Stress

DOP

Dust Out Pocket

OFA

Optimal Flow Analysis / Optimale flow analyse

Delivered with Your glider

Specifications

Size192123252729
Flat area, sq.m192123252729
Flat A.R.5.15.15.15.15.15.1
Flat span, m9.8410.3510.8311.2911.7412.16
Projected area, sq.m16.2317.9319.6421.3523.0624.77
Projected A.R.3.683.683.683.683.683.68
Projected span, m7.738.138.508.879.219.55
Cells, total484848484848
Cells, closed101010101010
Cord max, m2.442.562.682.802.903.01
Trims travel, mm130130130130130130
Accelerator travel, mm150150150150150150
Glider weight, kg4.95.05.15.25.35.4
Takeoff weight, kg50-7550-7565-8580-10595-125105-140
PPG takeoff weight, kg50-12050-12065-13080-14095-160105-180
Certification8G EN926-1/5.25G DGAC8G EN926-1/5.25G DGAC8G EN926-1/5.25G DGAC8G EN926-1/5.25G DGAC8G EN926-1/5.25G DGAC8G EN926-1/5.25G DGAC

Components

Upper surface leading edgeDOMINICO TEXTILE CO30D FM
Upper surface except leading edgeDOMINICO TEXTILE CO30D FM
Bottom surfaceDOMINICO TEXTILE CO30D FM
Ribs, supportedDOMINICO TEXTILE CO30D FM(NON WR)
Ribs, unsupportedDOMINICO TEXTILE CO30D FM(NON WR)
Diagonal ribsDOMINICO TEXTILE CO30D FM(NON WR)
Lines, upper cascadesLIROSDSL-70
Lines, middle cascadesLIROSDSL-70/PPSL-160
Lines, main (lower) cascadesEDELRID7343-280
Lines, main (lower) stabilo cascadeEDELRID6843-160
Lines, upper brake cascadeLIROSPPSL-120
Lines, middle brake cascadeLIROSPPSL-200
Lines, main (lower) brake cascadeEDELRID10N-200
Risers, webbingGUTH&WOLF GMBHWEBBING 20MM
Risers, pulleysLW RILEY PTY LTDRIELY
